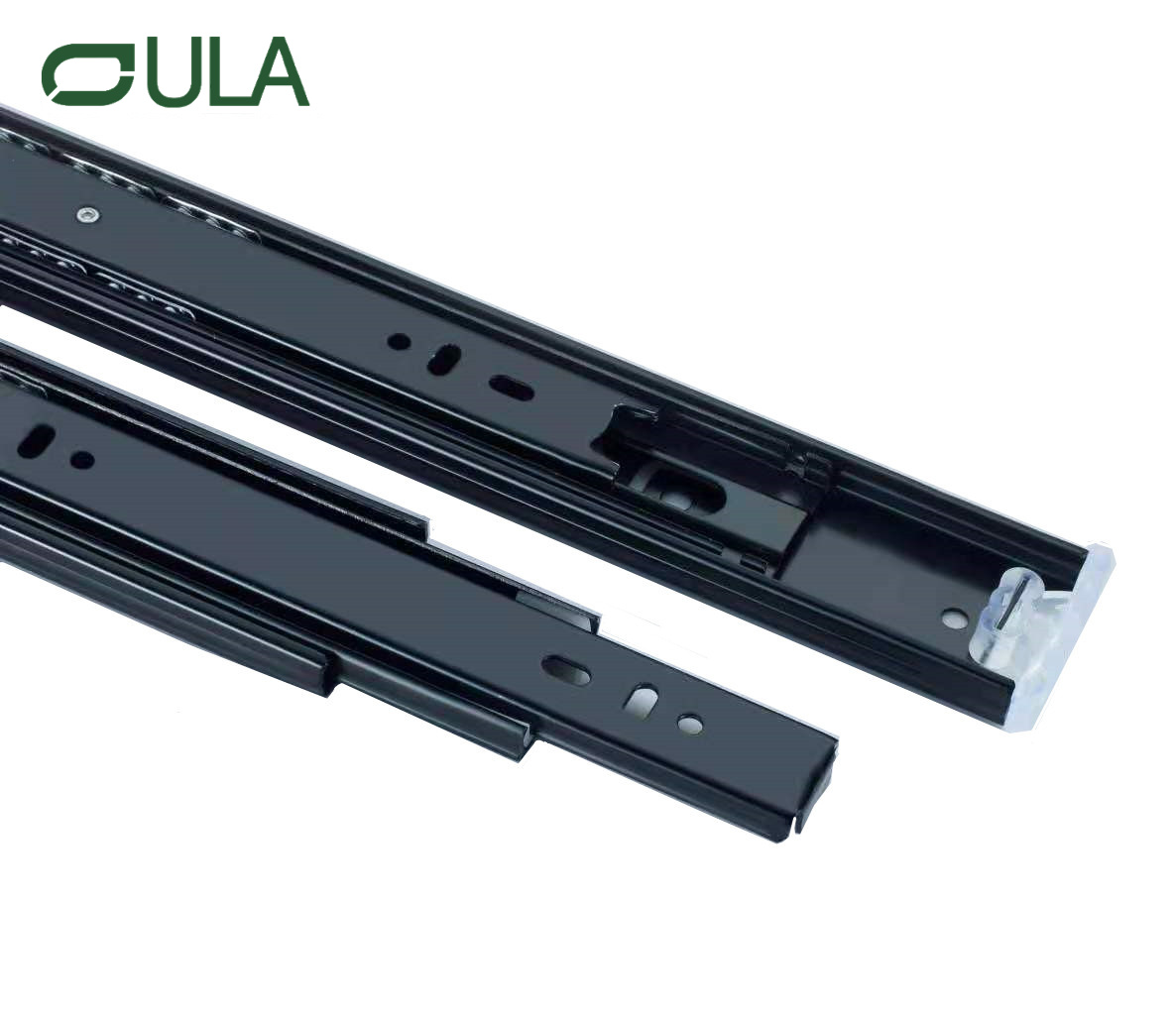

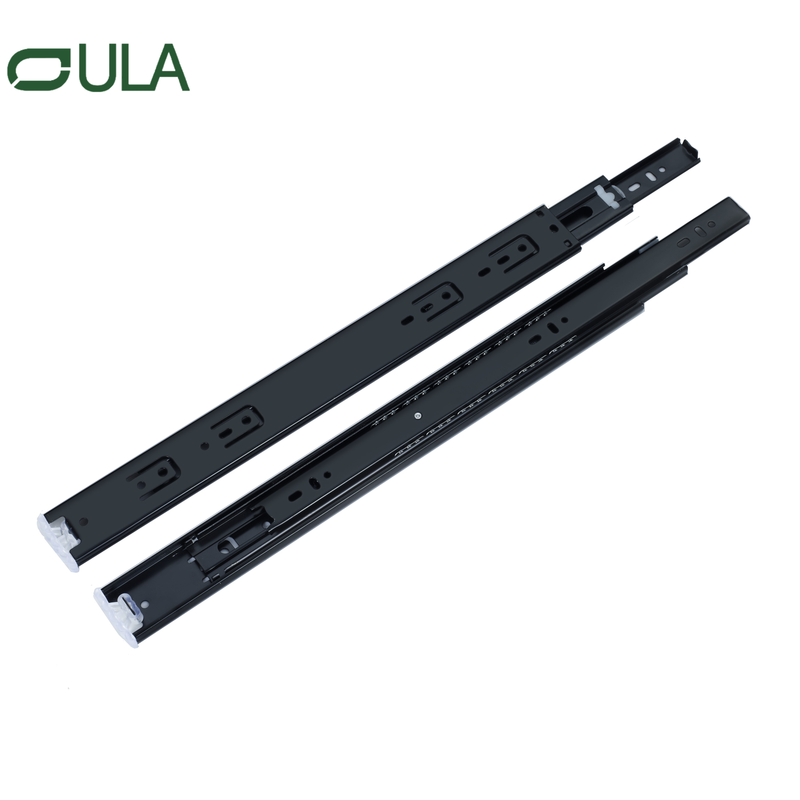

Modern 45mm Black Steel Drawer Slides with Iron Ball Bearing for Kitchen & G Furniture

Coating thickness：Zinc:1.8-2.2μm Black:10-15μm

MOQ:1500sets per each size(length)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification

Product name	Modern 45mm Black Steel Drawer Slides with Iron Ball Bearing for Kitchen & G Furniture
Material	Cold-rolled steel&SS201SS304
Type	3 fold ball bearing type
Usage	drawer/office desk/cabinet/basket
Balls Quantity	2-8balls
Width	45mm
Length	10-24 inch
Thickness&Weight	0.80.80.8mm=48g/inch 0.80.80.9mm=50g/inch 0.850.850.85=53g/inch 0.90.90.9mm=55g/inch 1.0x1.0x1.0 mm=60g/inch 1.01.01.2mm=62g/inch 1.21.21.2mm=72g/inch 1.21.21.5mm=75g/inch
Load Capacity	0.9mm=30-35KG,1.0mm=35KG,1.2mm=40KG,1.5mm=45kgs
Installation Method	slide installation
Testing	Salt Spray Test Hours:24-36 hours Cycle Test: 70000 times
More professional service	1.Allowed OEM&ODM service 2.Customized logo and packing available

※Using high quality cold-rolled steel material

Exquisite and professional manufacturing, the drawer are sliding smooth back and forth silently without any stuck

※Different surface finish for you to choose

Zinc&Black Dotted&Undotted

※ High quality steel ball

Non-toxic environm-entally friendly and effective to prevent corrosionand rust, adopt quality steel balls fixed struture, ensure the lateral stability in use silent!

※Prevent accidental detachment

Nylon plastic accessories

Transparent rubber

Cold and high temperature resistance
