Specification

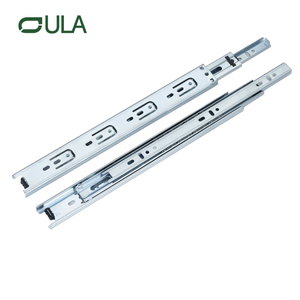

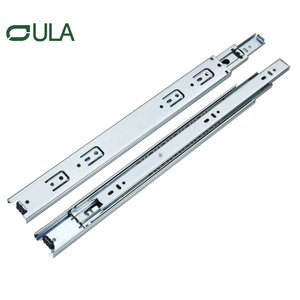

Product name | Jieyang Factory's High Quality Telescopic Channel Drawer Slide Rail Zinc Dotted Finish for Kitchen Use Home Furniture |
Material | Cold-rolled steel&SS201SS304 |

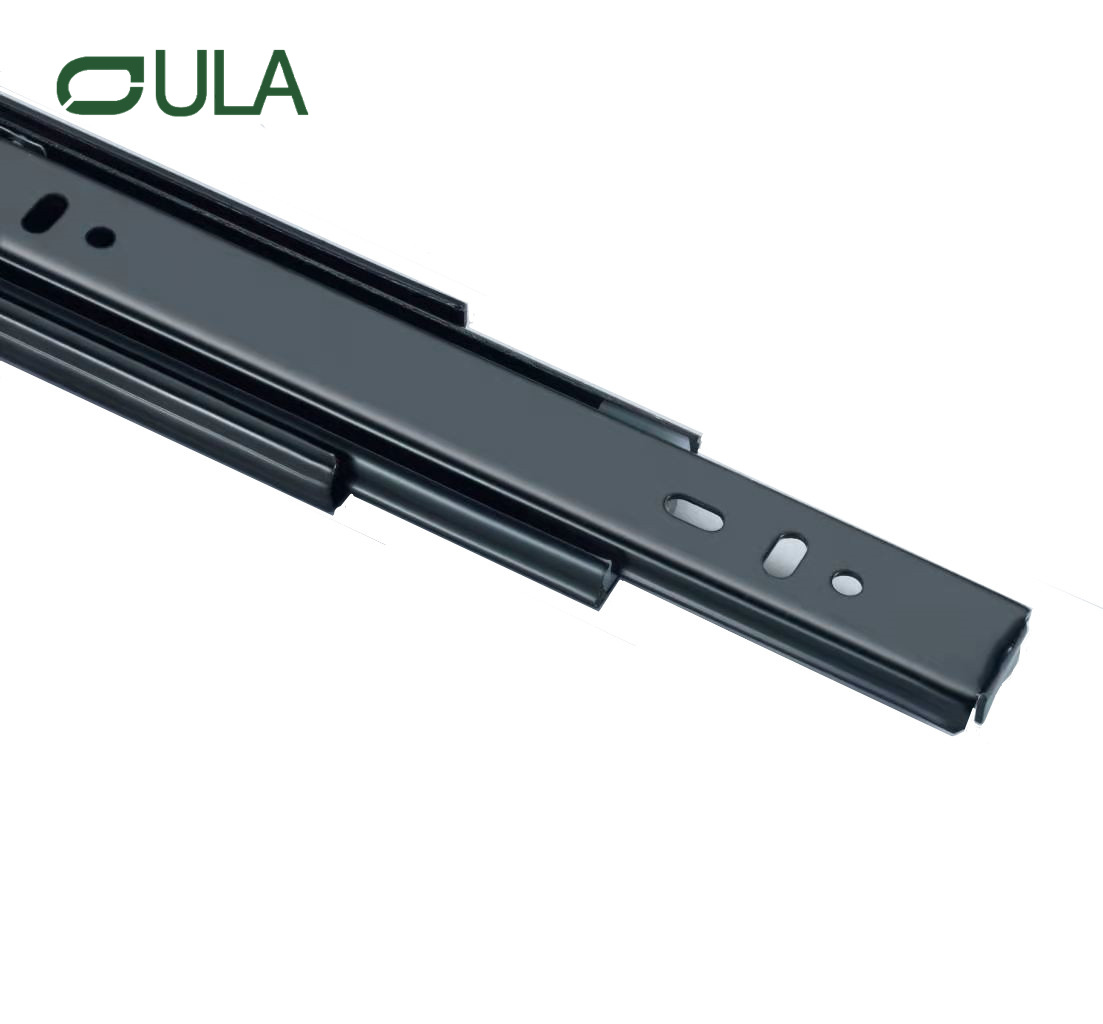

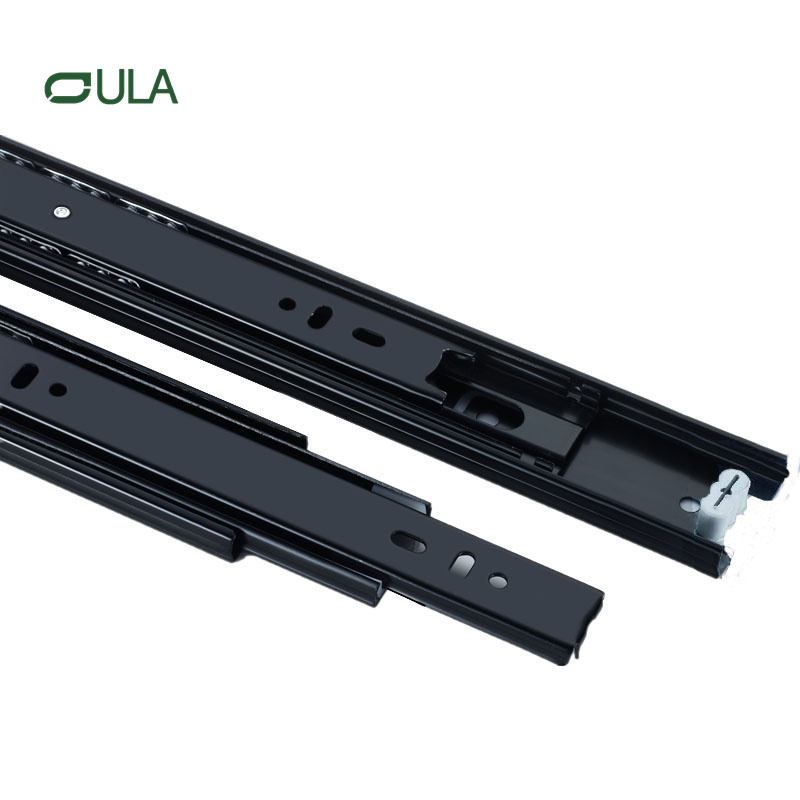

Type | 3 fold ball bearing type |
Usage | drawer/office desk/cabinet/basket |
Balls Quantity | 2-8balls |
Width | 45mm |
Length | 10-24 inch |
Thickness&Weight | 0.8*0.8*0.8mm=48g/inch 0.8*0.8*0.9mm=50g/inch 0.85*0.85*0.85=53g/inch 0.9*0.9*0.9mm=55g/inch 1.0x1.0x1.0 mm=60g/inch 1.0*1.0*1.2mm=62g/inch 1.2*1.2*1.2mm=72g/inch 1.2*1.2*1.5mm=75g/inch |
Load Capacity | 0.9mm=30-35KG,1.0mm=35KG,1.2mm=40KG,1.5mm=45kgs |

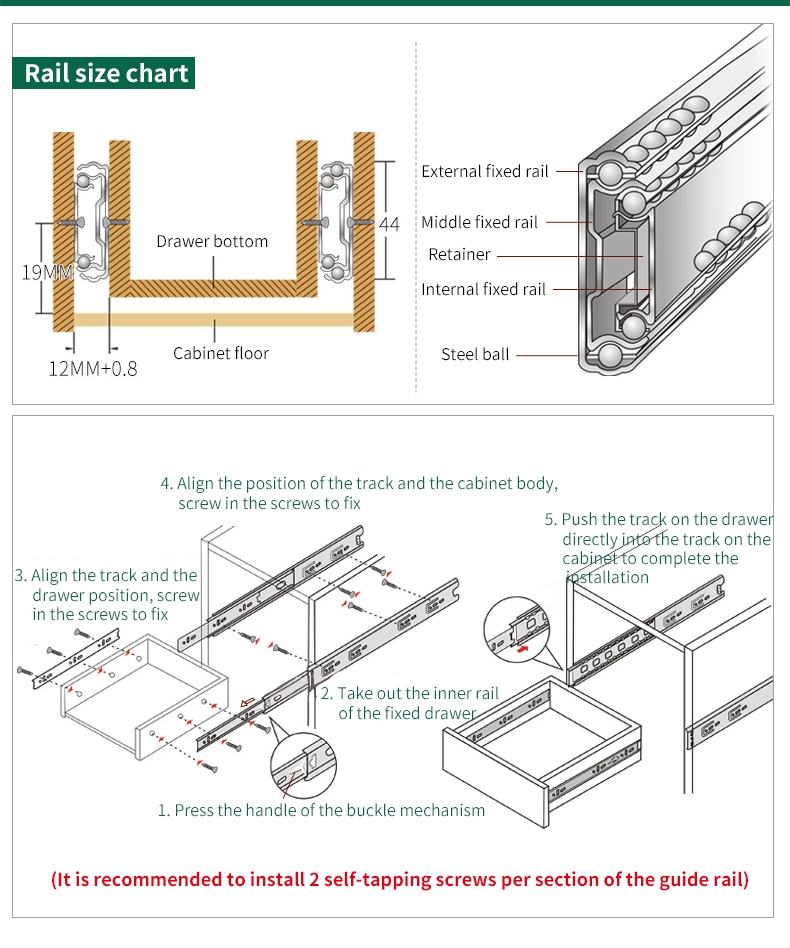

Installation Method | slide installation |
Testing | Salt Spray Test Hours:24-36 hours Cycle Test: 70000 times |
More professional service | 1.Allowed OEM&ODM service 2.Customized logo and packing available |

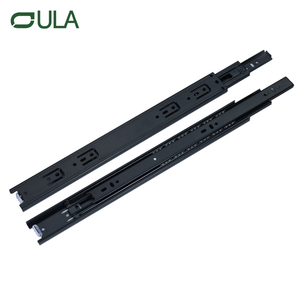

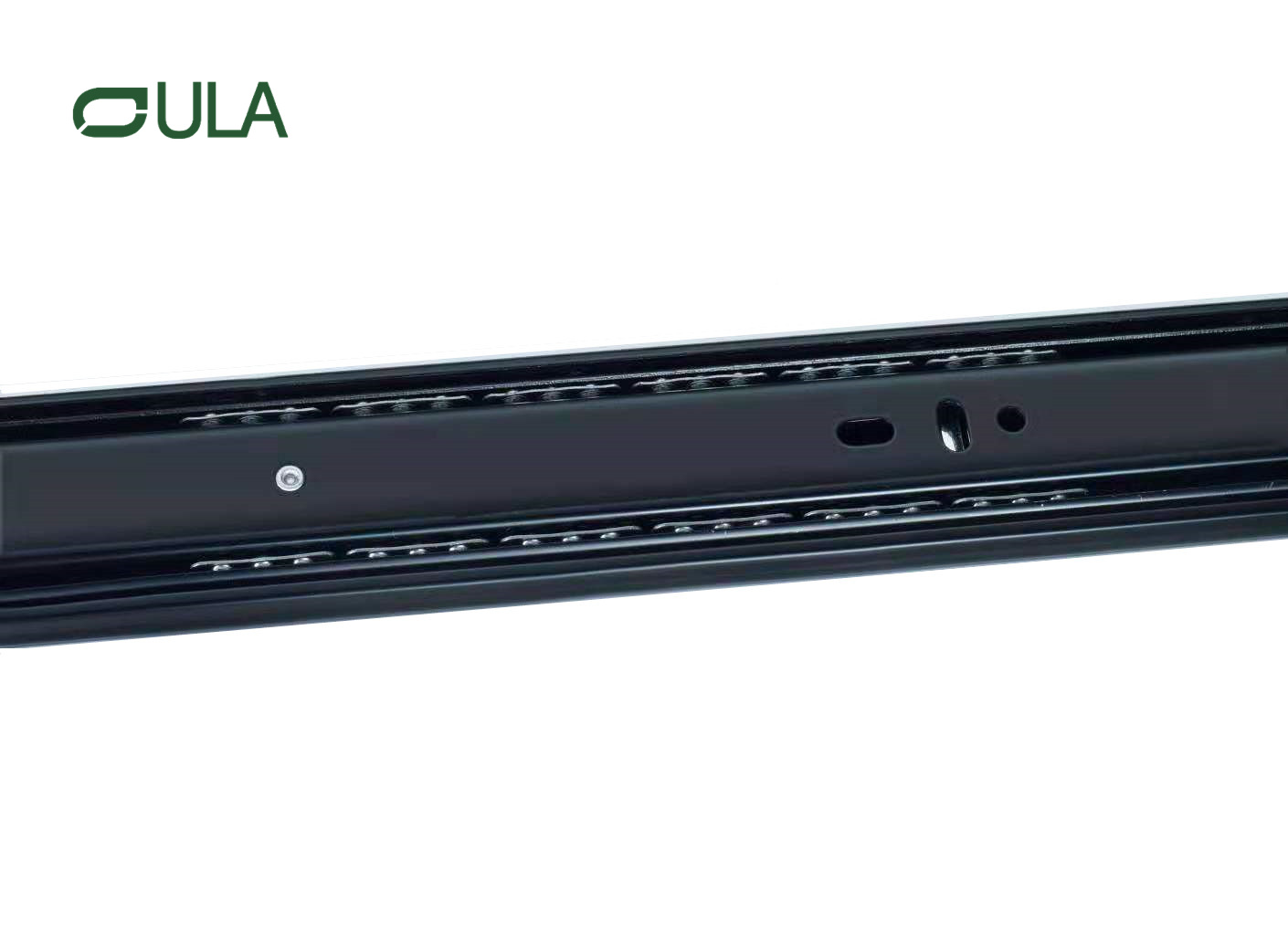

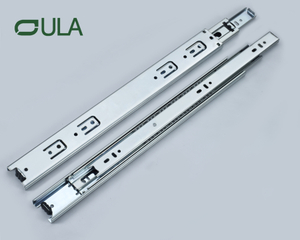

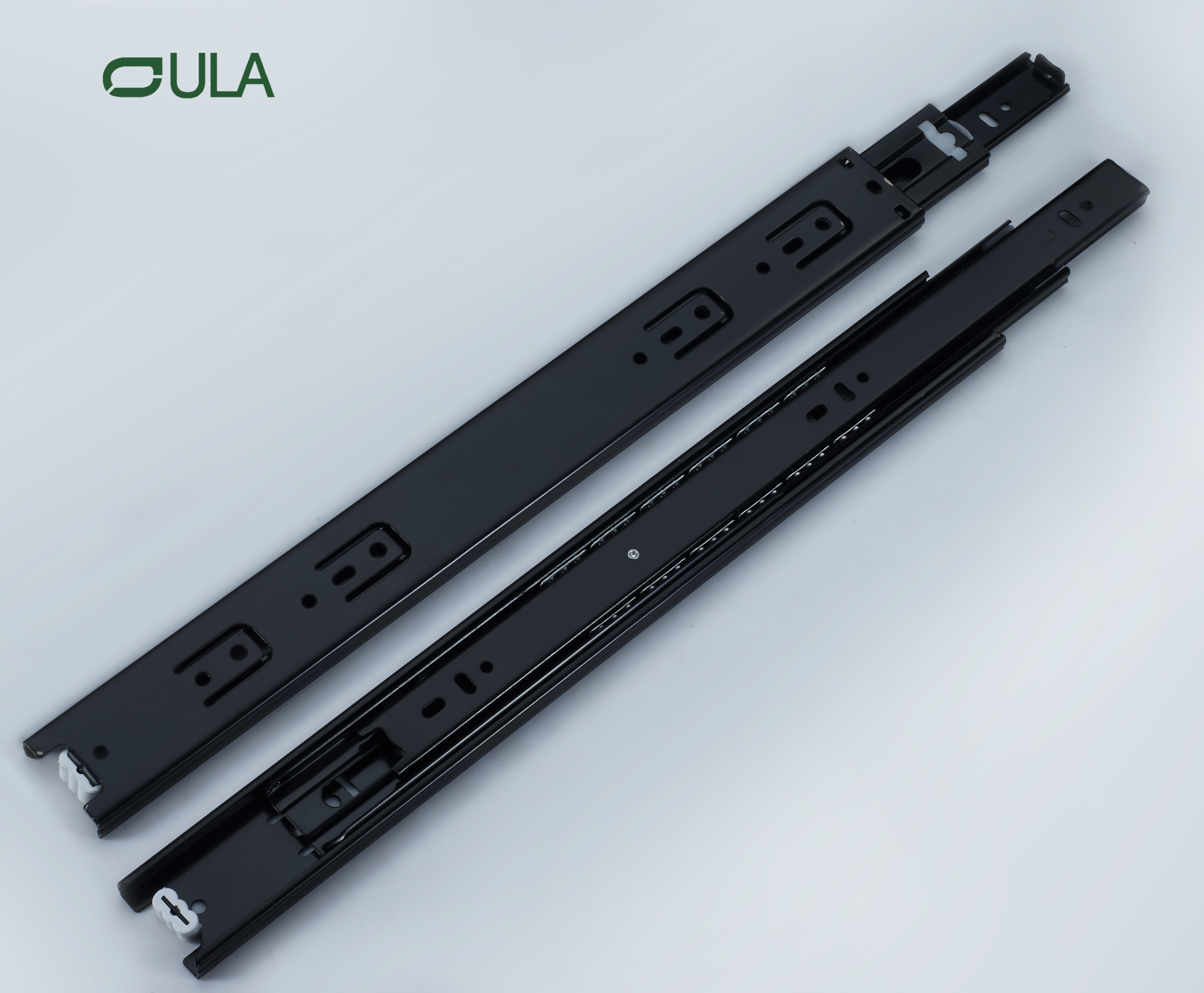

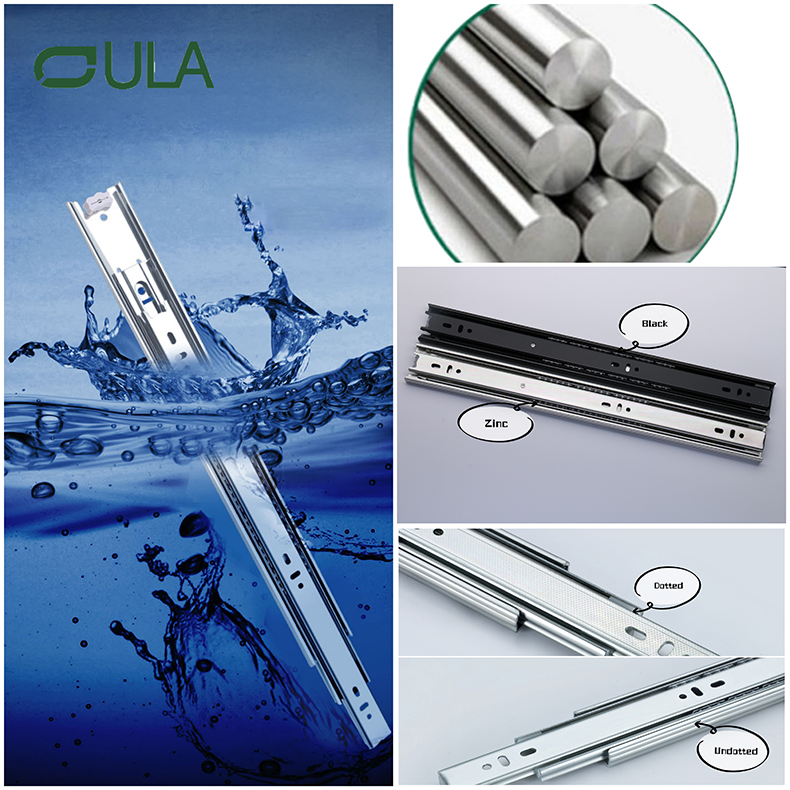

Zinc&Black Dotted&Undotted
Cold and high temperature resistance
Easy to install
Support customized product&package
The Jieyang Factory telescopic channel drawer slide rails combine high durability, silent performance, and versatile load capacity for kitchens, home furniture, and office furniture. With zinc dotted or optional black finishes, these slides provide reliable performance for residential and commercial applications.
As a professional drawer slide manufacturer and factory, we offer these telescopic channel slides for sale in wholesale quantities, supporting OEM and ODM services. Our products are suitable for suppliers, furniture manufacturers, and project contractors seeking high-quality drawer slide solutions.
Contact us today to request samples, pricing, or custom specifications. Send your inquiry now and secure a reliable drawer slide solution for your furniture production line.
