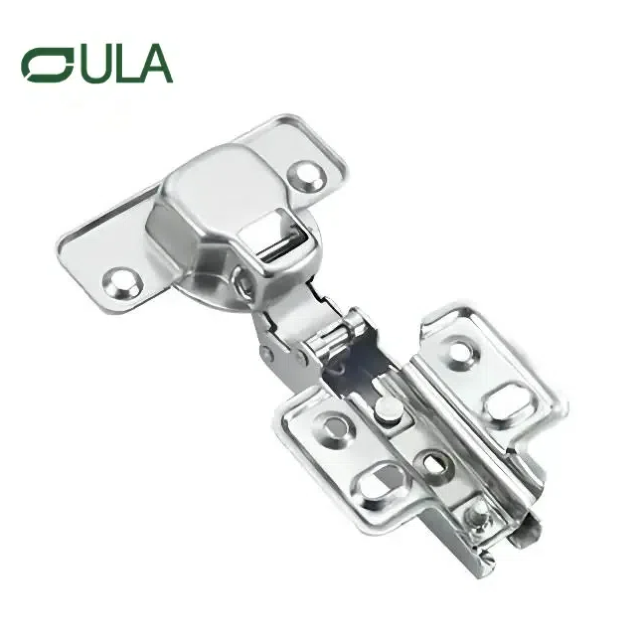

When building or upgrading cabinets, nothing affects the final look and functionality more than the hinges. A Slide-On Steel Furniture Hinge offers reliable strength and adjustability, but only if it is installed and maintained correctly. At Guangdong OULA Hardware Technology Co., Ltd., we know from years of testing and manufacturing that most issues DIYers and installers face can be prevented with the right preparation and aftercare. This guide provides step-by-step instructions for slide-on cabinet hinge installation, troubleshooting tips for common issues, and practical maintenance advice to ensure your furniture performs beautifully for years.
Before you pick up your tools, spend a few minutes on accurate measurements. The door thickness determines the hinge cup depth. Most slide-on hinges require a cup hole around 35mm in diameter, and the thickness of the door should be sufficient to support this without breaking through. Next, mark the cup location with precision—too close to the edge and the hinge may split the material; too far inside and the door will not close flush. Equally important is the mounting plate height, which defines how the hinge connects to the cabinet carcass. A mismatch here can cause sagging doors or gaps that are difficult to fix later.
A smooth installation starts with having the correct tools ready. A 35mm Forstner bit is essential for drilling the cup hole with a flat bottom. For screw holes, standard wood drill bits sized to your screws are sufficient. Keep a quality drill or driver on hand, a measuring tape, a square for alignment, and a pencil for marking. For beginners, a drilling template is highly recommended, as it ensures consistency and reduces the chance of mistakes across multiple cabinet doors. Professionals also suggest having extra screws on standby, as smaller screws may strip if overtightened and need to be replaced.
The first major task is preparing the hinge cup hole. For most Slide-On Steel Furniture Hinges, the standard diameter is 35mm, with a depth of around 12–13mm. Accuracy is crucial—too shallow and the hinge will not sit flush, too deep and the screw holes may weaken. Use masking tape as a depth guide on your drill bit if you do not have a stop collar. Always drill slowly and check progress to avoid damaging the door panel. For larger cabinet projects, it may be worthwhile to use a drill press instead of a handheld drill, as this ensures perfectly straight holes and consistent depths across multiple doors.
Once the cup hole is ready, position the mounting plate on the cabinet side panel. Use a square to ensure alignment and pre-drill screw holes to prevent splitting. Secure the plate with wood screws of the correct length. Do not overtighten—steel hinges can withstand force, but the wood substrate may strip under excessive pressure. If you are working with particleboard or MDF, consider using euro screws or dowels for stronger connections, as these materials can crumble if stressed.
Now attach the hinge arm to the door cup, then slide it onto the mounting plate. One of the advantages of a slide-on cabinet hinge installation is that the hinge arm locks into place with minimal effort. Once engaged, insert and tighten the fixing screws. Work sequentially from top to bottom hinges, ensuring the door is supported to avoid stress on any single hinge. For tall doors, always install at least three hinges to distribute weight evenly and prevent long-term sagging.
Even a perfectly measured installation will require fine-tuning. Slide-on hinges are designed with three-way adjustability:
Up and down adjustment corrects alignment with cabinet tops and bottoms.
Left and right movement eliminates gaps between doors.
Depth adjustment ensures doors sit flush against the cabinet face.
Work with small increments, testing the door movement after each change. When adjusted properly, doors should open smoothly, close softly, and align evenly across the cabinet front. If multiple doors are being installed side by side, check them all together once adjustments are made, as a perfectly aligned single door may still look uneven next to others.
If your door sags after installation, check the screws on the mounting plate first—they may have loosened during adjustment. If tightening does not fix the problem, adjust the up/down setting to raise or lower the hinge arm slightly. For uneven gaps, use the side-to-side adjustment to create uniform spacing. In some cases, simply loosening all hinges slightly, adjusting the door by hand, and then retightening can reset the alignment more effectively than making small individual changes.
Some Slide-On Steel Furniture Hinges include an integrated soft-close mechanism. If the door does not close gently, confirm that the hinge is fully seated in the cup and plate. Next, check the tension setting if available; some models allow you to adjust the damping strength. If the door closes too forcefully, reduce the damping pressure or balance the hinges by adjusting both top and bottom units evenly. For heavy doors, consider pairing soft-close hinges with gas struts or dampers for smoother performance.
A hinge that squeaks or resists movement can usually be solved with lubrication. Use a silicone-based spray or light machine oil applied sparingly to the pivot points. Avoid petroleum grease or thick lubricants—they attract dust and can damage the finish of the steel over time. If noise persists, inspect the hinge for misalignment or signs of wear. Sometimes, the problem comes not from the hinge itself but from screws loosening and allowing slight metal friction. A simple tightening may solve what seems like a lubrication issue.
Steel finishes are durable, but regular care will extend their life. Wipe hinges occasionally with a damp cloth to remove dust and grease buildup. For kitchens or humid environments, use a mild soap solution followed by drying with a soft cloth to prevent corrosion. Avoid harsh chemicals or abrasive pads that may scratch protective coatings. In coastal regions or high-moisture spaces such as bathrooms, it is advisable to check hinges monthly for early signs of rust, as salt and humidity accelerate corrosion.
Like all moving parts, hinges have a service life. High-quality products, such as those from Guangdong OULA Hardware Technology Co., Ltd., undergo 70,000 cycle tests and 24-hour salt spray testing to ensure performance. However, signs such as excessive play in the hinge arm, doors that no longer align despite adjustments, or hinges that no longer hold their spring tension indicate it is time for replacement. When sourcing replacements, always ask about test certifications and expected life cycles to ensure you are investing in reliable hardware. In professional settings such as hotels or offices, having spare hinges on hand is strongly recommended so that replacements can be made quickly without interrupting daily use.
Installing and maintaining a Slide-On Steel Furniture Hinge does not have to be complicated. With the right tools, careful adjustments, and routine maintenance, your cabinets can stay aligned, quiet, and durable for years. At Guangdong OULA Hardware Technology Co., Ltd., we specialize in producing hinges tested for long life and consistent quality, giving you peace of mind with every project. For technical drawings, mounting plate samples, or bulk order inquiries, contact us today—we are ready to support your next installation.
