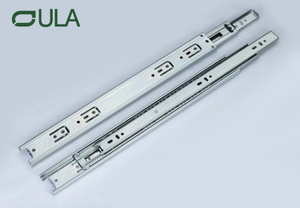

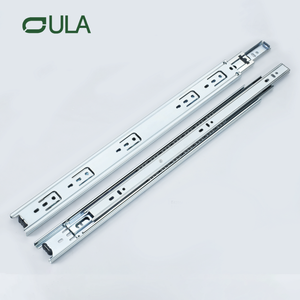

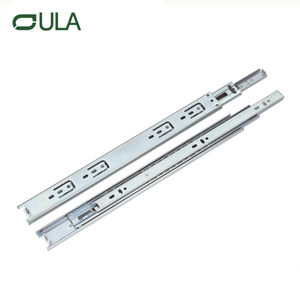

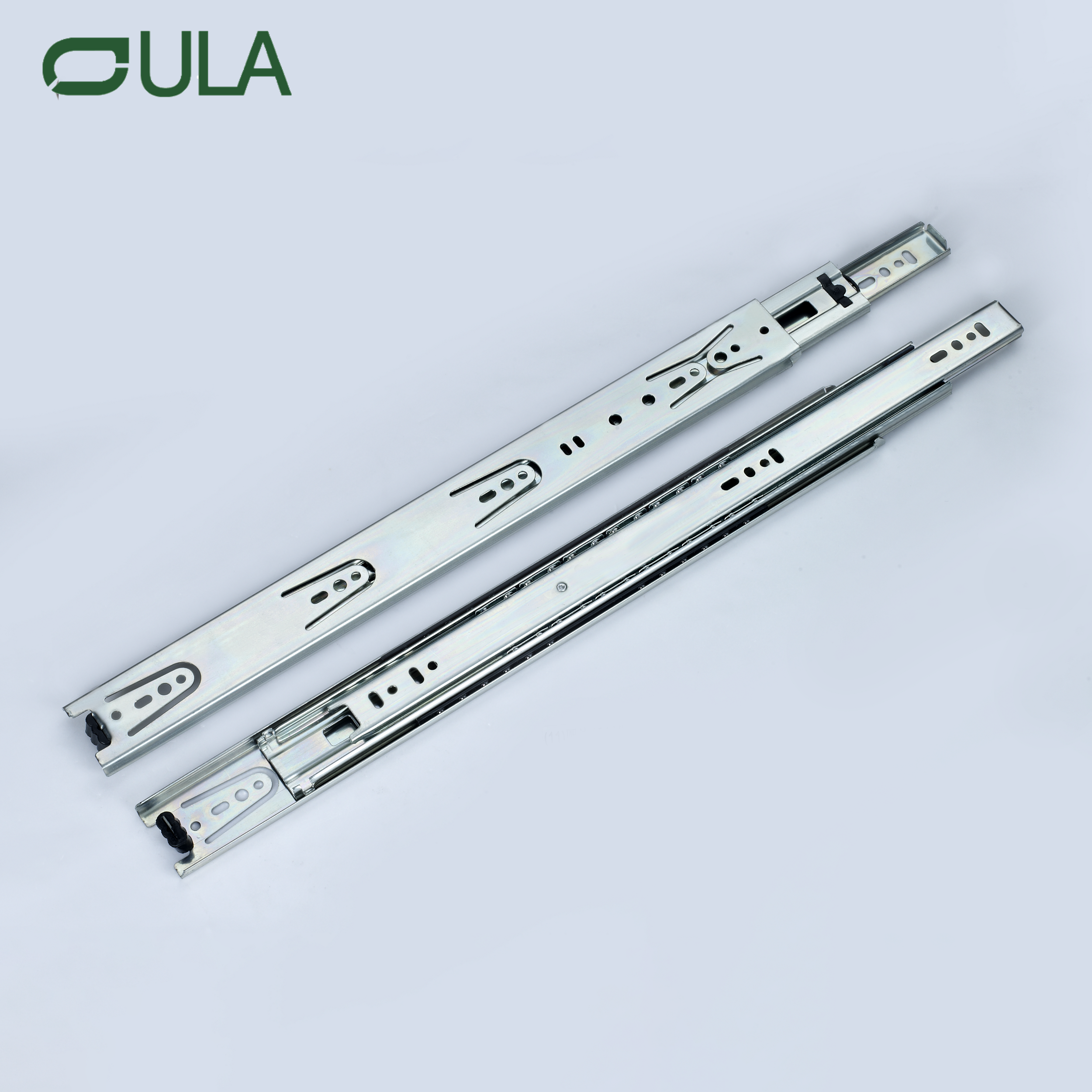

Factory good quality triple extension ball bearing zinc finish drawer slide for furniture

MOQ:1500sets per each size(length)

Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification

Product name	Factory good quality triple extension ball bearing zinc finish drawer slide for furniture
Material	Cold-rolled steel
Type	3 fold ball bearing type
Usage	drawer/office desk/cabinet/basket
Balls Quantity	2-8balls
Width	45mm
Length	10-24 inch
Thickness&Weight	1.0x1.0x1.0 mm=56g/inch 1.21.21.2mm=70g/inch 1.21.21.5mm=72g/inch
Load Capacity	1.0mm=35KG,1.2mm=40KG,1.5mm=45kgs
Installation Method	slide installation
Testing	Salt Spray Test Hours:24-36 hours Cycle Test: 70000 times
More professional service	1.Allowed OEM&ODM service 2.Customized logo and packing available

※Using high quality cold-rolled steel material

Exquisite and professional manufacturing, the drawer are sliding smooth back and forth silently without any stuck

※Different surface finish for you to choose

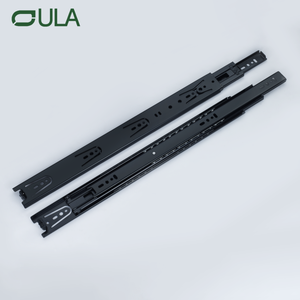

Zinc&Black Dotted&Undotted

※ High quality steel ball

Non-toxic environm-entally friendly and effective to prevent corrosionand rust, adopt quality steel balls fixed struture, ensure the lateral stability in use silent!

※Prevent accidental detachment

Nylon plastic accessories

Big rubber&Small rubber

Cold and high temperature resistance
