35mm 3-fold Full extension telescopic channel drawer slide

The 35mm size provides a compact, space-saving solution, while the 3-fold extension ensures durability and full accessibility.
With the telescopic design, the slide offers strength and stability, supporting medium to heavy loads.
It ensures smooth operation over time, even under frequent use, making it ideal for both residential and commercial spaces.
MOQ:2000sets /each size(length)
Availability:
Quantity:


Product Overview


The 35mm 3-fold full extension telescopic channel drawer slide is made from high-quality cold-rolled steel, ensuring durability and strength for long-lasting performance. It uses high-quality steel balls for smooth, consistent movement, even under heavy loads.


The design includes safety features to prevent accidental detachment, ensuring secure operation over time. This drawer slide is available in two types: the standard model and the Hettich type, offering flexibility to meet different application needs. It is ideal for use in kitchens, offices, and other furniture requiring reliable and efficient drawer movement.


Specifications


Product name

35mm 3-fold Full extension telescopic channel drawer slide

Material
Iron&stainless steel
Type
3 fold ball bearing type
Usage
drawer/office desk/cabinet/basket
Brand
OULA
Balls Quantity
2&3balls
Width
35MM
Length
10-24 inch
Thickness

0.6x0.6x0.7mm=32g/inch

0.7x0.7x0.7mm=35g/inch

0.8×0.8×0.8mm=40g/inch

0.9x0.9x0.9mm=44g/inch

1.0x1.0x1.0mm=52g/inch

1.0x1.0x1.2mm=55g/inch

1.1x1.1x1.2mm=58g/inch

Load Capacity
0.7mm&0.8mm=20KG, 0.9&1.0mm=25KG-30KG
Finishing
Zinc/Black
Installation Method
slide installation
Testing
Salt Spray Test Hours: 24-36 hours
Cycle Test: 70000 times
More professional service
1. Allowed OEM&ODM service
2. Customized logo and packing available


Product Features


iron and stainless steel Material

The drawer slide is made from a combination of, ensuring durability and resistance to corrosion for long-term use.


3-Fold Ball Bearing Type

This slide features a 3-fold ball bearing mechanism, allowing smooth and stable extension and retraction of drawers for consistent performance.


2 & 3 Balls Design

The slide uses a 2 and 3-ball bearing design, enhancing the load-bearing capacity and ensuring smoother movement for heavier drawers.

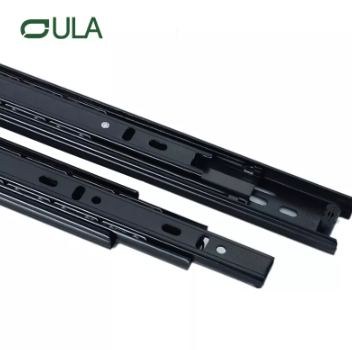

35mm 3-fold Full extension telescopic drawer slide

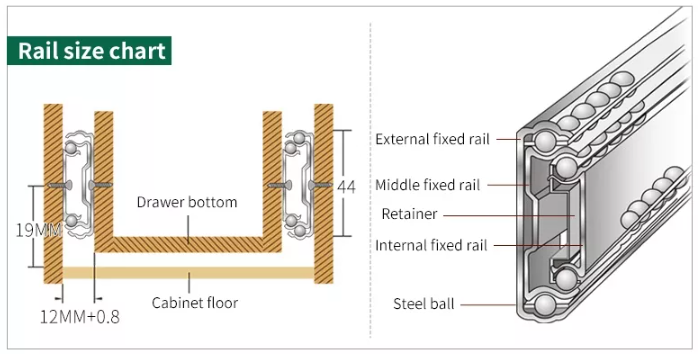

External Fixed Rail

The slide includes an external fixed rail, which provides structural stability and ensures secure attachment to the furniture frame.


Middle Fixed Rail

A middle fixed rail offers additional support and strengthens the overall structure, ensuring balanced and smooth movement during use.


Retainer and Internal Fixed Rail

The retainer and internal fixed rail provide additional durability and maintain smooth operation, helping to prevent wear and tear on the slide components.


35mm 3-fold Full extension telescopic channel drawer slide



Product Advantages


High-Quality Cold-Rolled Steel

Made from premium cold-rolled steel, the slide offers enhanced durability and strength, ensuring long-lasting performance and resistance to wear over time.


Smooth and Silent Operation

The professional manufacturing ensures the drawer slides smoothly without any jamming or noise, providing a quiet and efficient user experience.


Variety of Surface Finishes

Available in zinc and black finishes, as well as dotted and undotted types, allowing for customization to match different design preferences.


1


Premium Steel Balls

The use of high-quality steel balls ensures smooth, stable, and silent movement, while being resistant to corrosion and rust, making them ideal for long-term use.


Accidental Detachment Prevention

Features nylon plastic accessories and transparent rubber, which help prevent accidental detachment and provide resistance to both high and low temperatures.


Customization and Easy Installation

With options for normal and Hettich types and international standard hole positions, installation is simple. Customized products and packaging options, including poly bags, blister cards, and color boxes, are available.


4


Scenarios


For Cabinets

These drawer slides are perfect for use in cabinets, ensuring smooth and reliable operation, even for heavier cabinet doors and drawers.


For Office Desks

Ideal for office furniture, these slides enable smooth and efficient drawer movement in desks, improving organization and functionality in the workplace.


For Storage Baskets

The slides provide stable support and full extension for storage baskets, making them suitable for easy access to contents in various storage units.
