3-Fold Telescopic Ball Bearing Drawer Slide

With a modern design, the 3-Fold Telescopic Ball Bearing Drawer Slide ensures efficient space usage and easy access to stored items. It features a ball bearing mechanism for smooth, quiet movement, even under load.
OEM/ODM services are available, allowing customization to meet specific needs.
MOQ:1500sets-2000sets per size(length)
Availability:
Quantity:


Product Overview


The 3-Fold Telescopic Ball Bearing Drawer Slide is designed for smooth and durable performance in various settings, including furniture, kitchens, dining areas, and warehouses. Made from cold-rolled steel, it offers strength and resistance to wear. The 3-fold ball bearing design ensures easy, quiet movement, even under load.

It is available in multiple surface finishes, such as zinc and black, to suit different preferences. The slide also features nylon plastic accessories and transparent rubber components, providing additional durability and smooth operation. This product meets factory standards and is available for OEM/ODM services, allowing for custom solutions to meet specific needs.



Specifications


Product name

3-Fold Telescopic Ball Bearing Drawer Slide

Type

3 fold ball bearing type

Material

Cold-rolled steel

Balls Quantity

2&3balls

Width

42mm

Length

10-24 inch

Thickness&Weight

0.65x0.65x0.65mm=40g/inch

                                                               0.7*0.7*0.7mm=42g/inch

0.7*0.7*0.8mm=38g/inch

0.8*0.8*0.8mm=48g/inch

                                                                0.9x0.8x0.9mm=50g/inch

                                                                0.9x0.9x0.9mm=52g/inch

Load Capacity

0.7mm&0.8mm=20-25KG,0.9mm=30KG

Installation Method

slide installation

Testing

Salt Spray Test Hours:24-36 hours

Cycle Test: 70000 times

More professional service

1.Allowed OEM&ODM service

2.Customized logo and packing available



Product Features


Cold-Rolled Steel Material

Made from high-quality cold-rolled steel, this slide ensures strength, durability, and resistance to wear, providing long-lasting support for heavy-duty drawers.

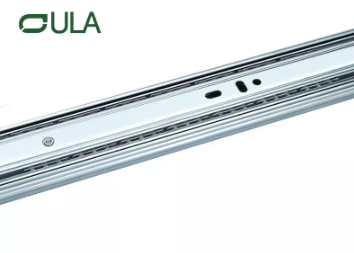

3-Fold Telescopic Ball Bearing Drawer Slide


3-Fold Ball Bearing Design

The 3-fold ball bearing type offers smooth, efficient movement, allowing drawers to open and close easily, even under load, for consistent performance.


Variety of Surface Finishes

Available in different surface finishes like zinc or black, as well as dotted or undotted, giving customers flexibility to match the slide to various design preferences.


Nylon Plastic Accessories and Transparent Rubber

Features high-quality nylon plastic accessories and transparent rubber, ensuring resistance to both high and low temperatures while preventing rust and corrosion for extended use.


Product Advantages


Salt Spray Test Resistance

The product undergoes a salt spray test for 24-36 hours, ensuring it is resistant to corrosion and suitable for use in various environments, including humid areas.


High Durability with Cycle Test

The slide is tested to withstand up to 70,000 cycles, guaranteeing reliable operation over time, even with frequent use in residential or commercial settings.


OEM & ODM Service Available

The 3-Fold Telescopic Ball Bearing Drawer Slide offers OEM and ODM services, allowing customization to meet specific design or functionality requirements.


Customized Logo and Packaging

It provides the option for customized logos and packaging, helping businesses brand the product to align with their unique marketing needs.



International Standard Hole Position

The slide is designed with international standard hole positions, ensuring easy installation and compatibility with various drawer and cabinet systems.


Simple Installation

With a straightforward installation process, this drawer slide can be easily mounted, reducing the time and effort needed for setup.



Scenarios


Drawers

The 3-Fold Telescopic Ball Bearing Drawer Slide is perfect for use in drawers, providing smooth and efficient movement for easy access to stored items.


Office Desks

Ideal for office desks, this slide offers smooth extension for drawers, making it easier to organize office supplies and improve workspace efficiency.


Cabinets

The slide is well-suited for cabinet drawers, ensuring seamless operation in kitchens, bathrooms, or storage areas, enhancing both functionality and storage.


Storage Baskets

This slide is ideal for storage baskets, providing smooth and quiet movement, making it easy to access items stored in kitchens, garages, or closets.
