| Quantity: | |
|---|---|
Specification

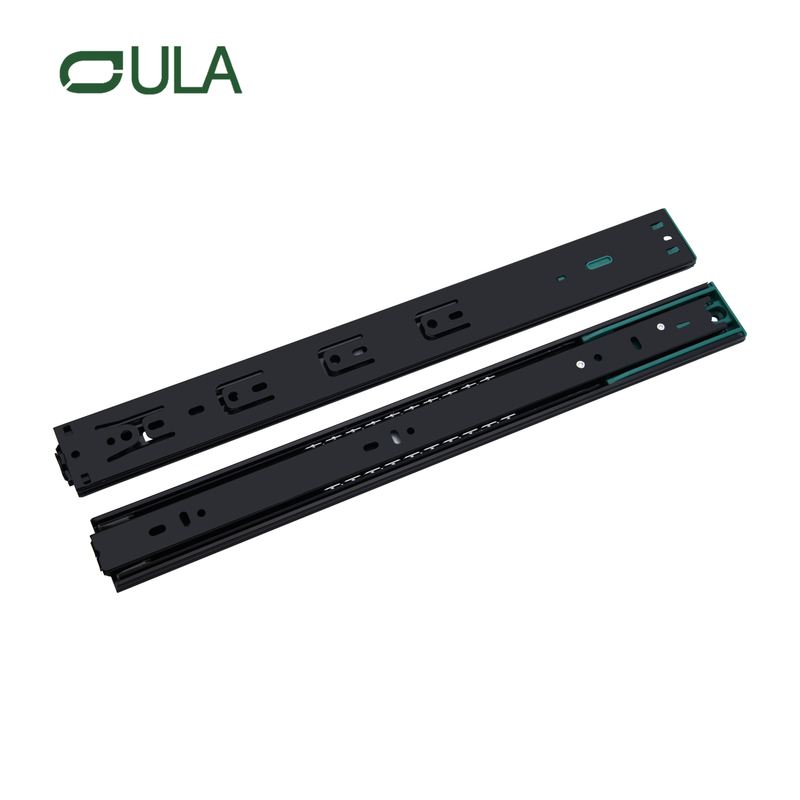

Product name | Q235 Material Taiwan Machine Made Super Smooth Drawer Channel Push Open Drawer Slide |
Material | Shanghai material&Q235material |
Type | Push open slide |
Usage | drawer/office desk/cabinet/basket |
Brand | OULA |
Balls Quantity | 2balls |
Width | 45MM |
Length | 10-24 inch |
Thickness&Weight | 1.0x1.0x1.2mm=60g/inch 1.2x1.2x1.5mm=72g/inch |
Load Capacity | 30-45kgs |
Finishing | Zinc/Black |
Installation Method | slide installation |
Testing | Salt Spray Test Hours:24-36 hours Cycle Test: 70000 times |
More professional service | 1.Allowed OEM&ODM service 2.Customized logo and packing available |
※Using high quality cold-rolled steel material
※Independently developed patented products
※The first double spring design in China
※SGS cycle test more than 80,000 times
※Different dumping design&surface finish for you to choose
※Using high quality cold-rolled steel material
Exquisite and professional manufacturing, the drawer are sliding smooth back and forth silently without any stuck
※Zinc&Black for your options
※Level 1 rebound
Need to use same power to push and pull out the drawer
※Level 3 rebound
Power for pushing and pulling out the drawer are not the same, need little power to push the drawer, so that can protect pregnant , the older and child from being hit
※ High quality steel ball
Non-toxic environm-entally friendly and effective to prevent corrosionand rust, adopt quality steel balls fixed struture, ensure the lateral stability in use silent!
※Prevent accidental detachment
Nylon plastic accessories
Cold and high temperature resistance
※International standard hole position
Easy to install
Support customized product&package
Specification
Product name | Q235 Material Taiwan Machine Made Super Smooth Drawer Channel Push Open Drawer Slide |
Material | Shanghai material&Q235material |
Type | Push open slide |
Usage | drawer/office desk/cabinet/basket |
Brand | OULA |
Balls Quantity | 2balls |
Width | 45MM |
Length | 10-24 inch |
Thickness&Weight | 1.0x1.0x1.2mm=60g/inch 1.2x1.2x1.5mm=72g/inch |
Load Capacity | 30-45kgs |
Finishing | Zinc/Black |
Installation Method | slide installation |
Testing | Salt Spray Test Hours:24-36 hours Cycle Test: 70000 times |
More professional service | 1.Allowed OEM&ODM service 2.Customized logo and packing available |
※Using high quality cold-rolled steel material
※Independently developed patented products
※The first double spring design in China
※SGS cycle test more than 80,000 times
※Different dumping design&surface finish for you to choose
※Using high quality cold-rolled steel material
Exquisite and professional manufacturing, the drawer are sliding smooth back and forth silently without any stuck
※Zinc&Black for your options
※Level 1 rebound
Need to use same power to push and pull out the drawer
※Level 3 rebound
Power for pushing and pulling out the drawer are not the same, need little power to push the drawer, so that can protect pregnant , the older and child from being hit
※ High quality steel ball
Non-toxic environm-entally friendly and effective to prevent corrosionand rust, adopt quality steel balls fixed struture, ensure the lateral stability in use silent!
※Prevent accidental detachment
Nylon plastic accessories
Cold and high temperature resistance
※International standard hole position
Easy to install
Support customized product&package
