| | Factory high quality zinc 17 mm telescopic channel mini drawer slide undermounted runner slide rail |
| Material | Iron |
| Type | 2 fold ball bearing type |
| Usage | drawer/office desk/cabinet/basket |
| Model Nomber | E1707 |
| Brand | OULA |
| Balls Quantity | 2 balls |
| Width | 17MM |
| Length | 182/214/246/278 mm |
| Thickness | 0.7×0.7mm 0.8x0.8mm 1.0x1.0mm 1.2x1.2mm |
| Load Capacity | 10kgs |
| Finishing | Zinc/Black |
| Installation Method | slide installation |
| Testing | Salt Spray Test Hours: 24-36 hours Cycle Test: 70000 times
|
| More professional service | 1. Allowed OEM&ODM service 2. Customized logo and packing available |

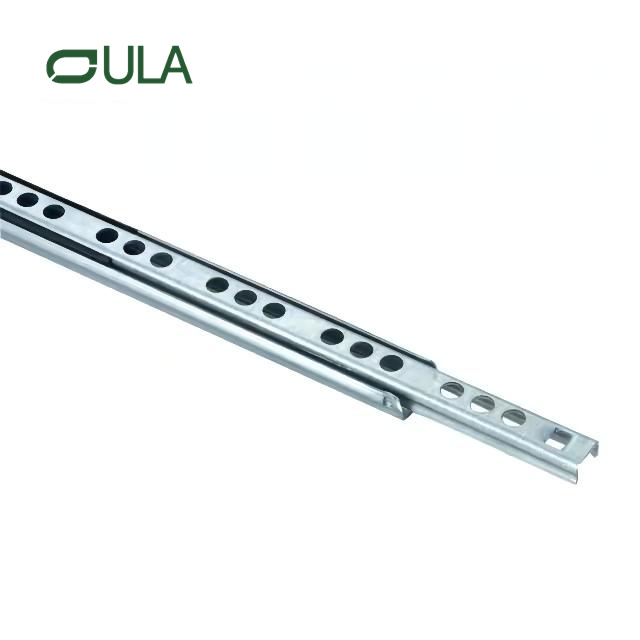

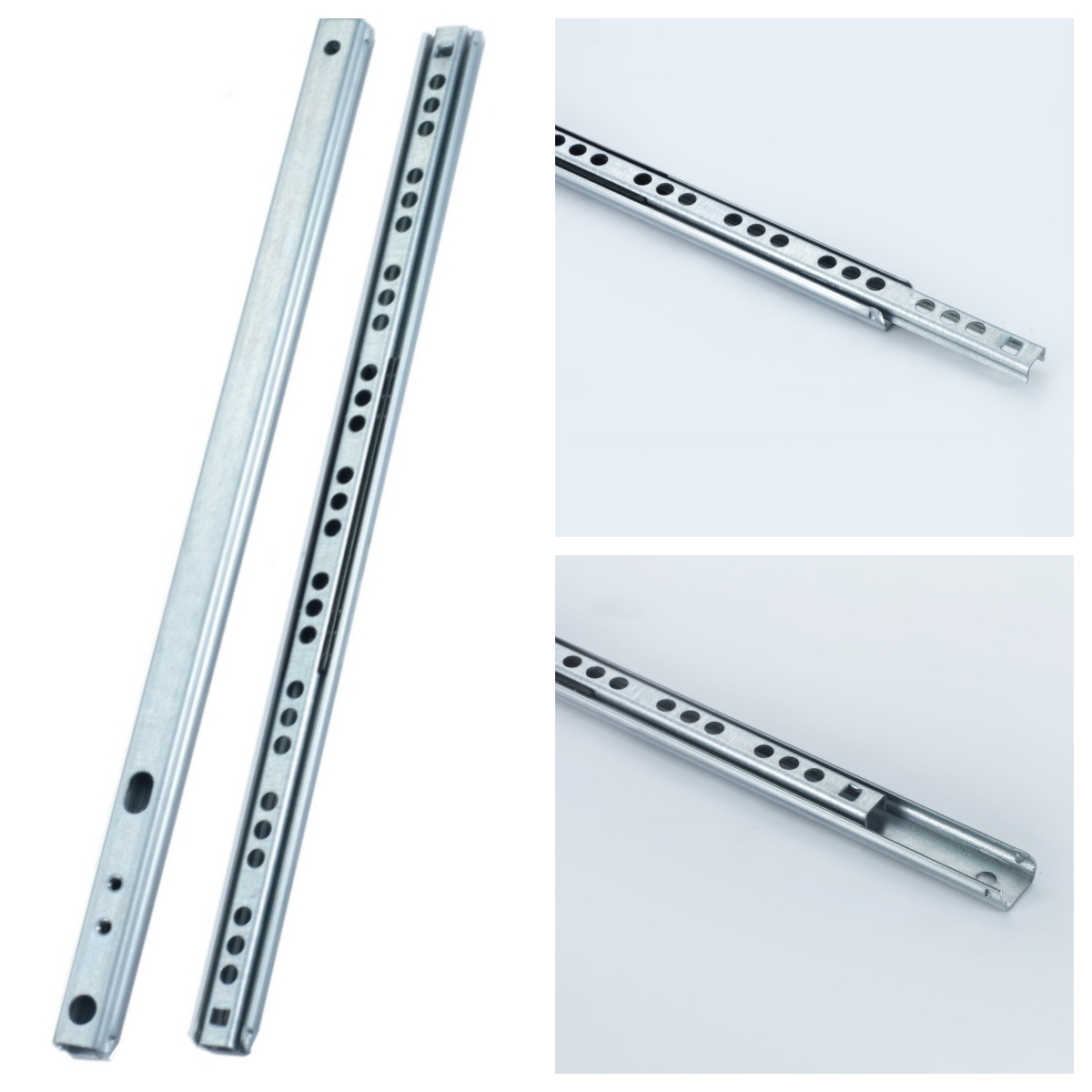

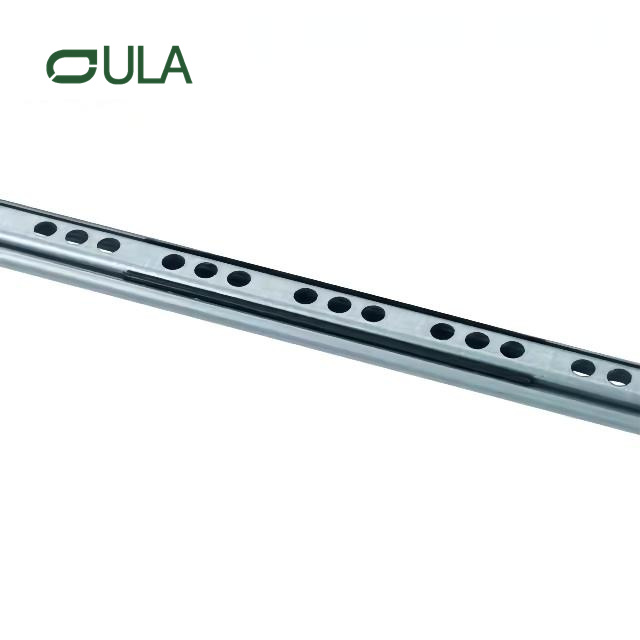

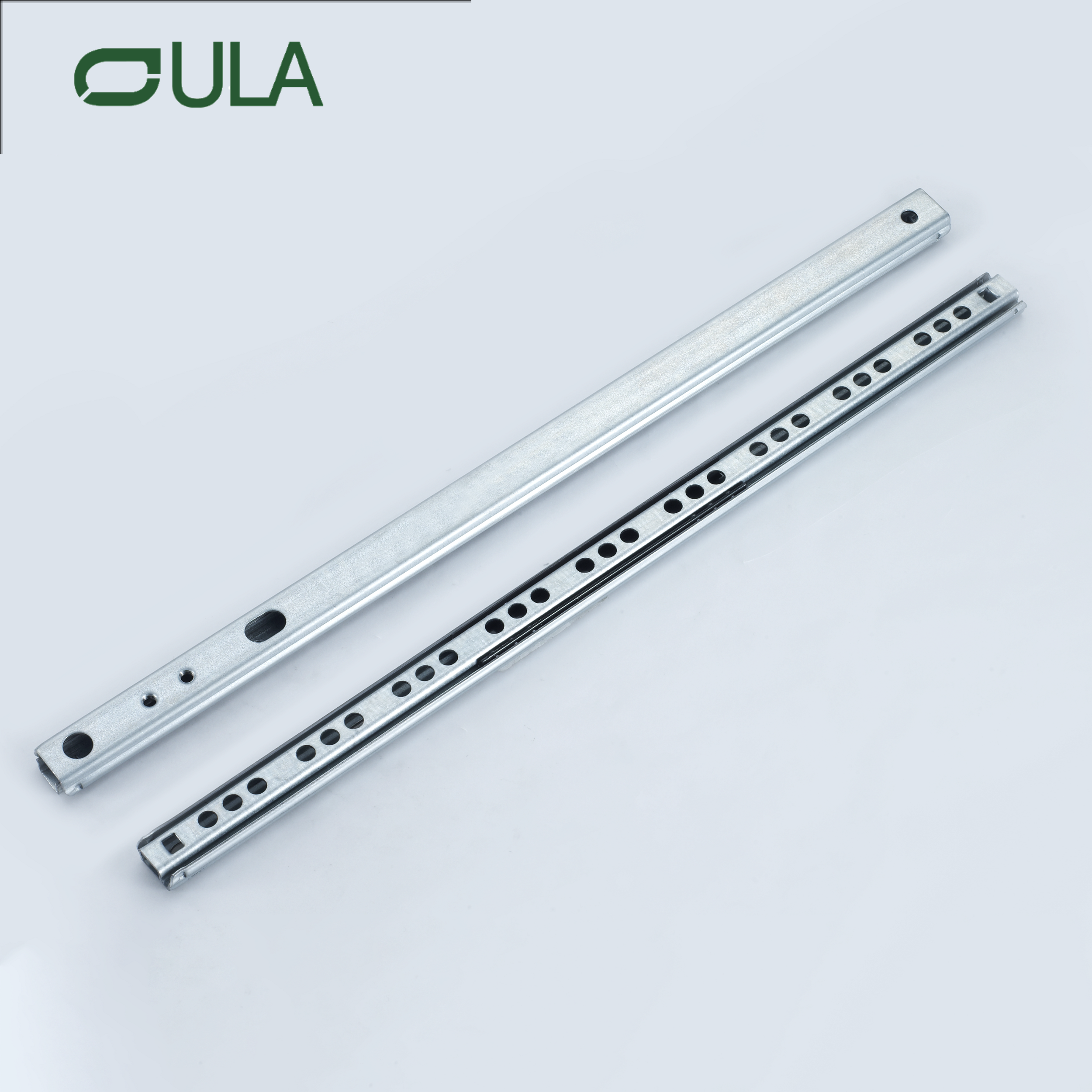

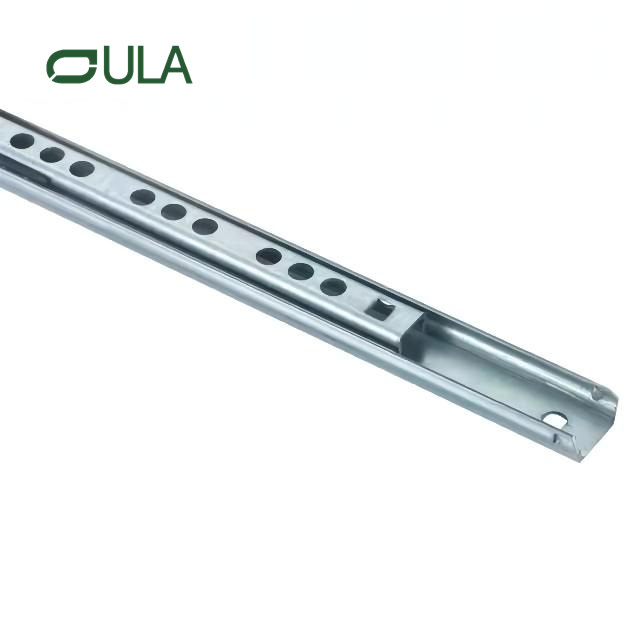

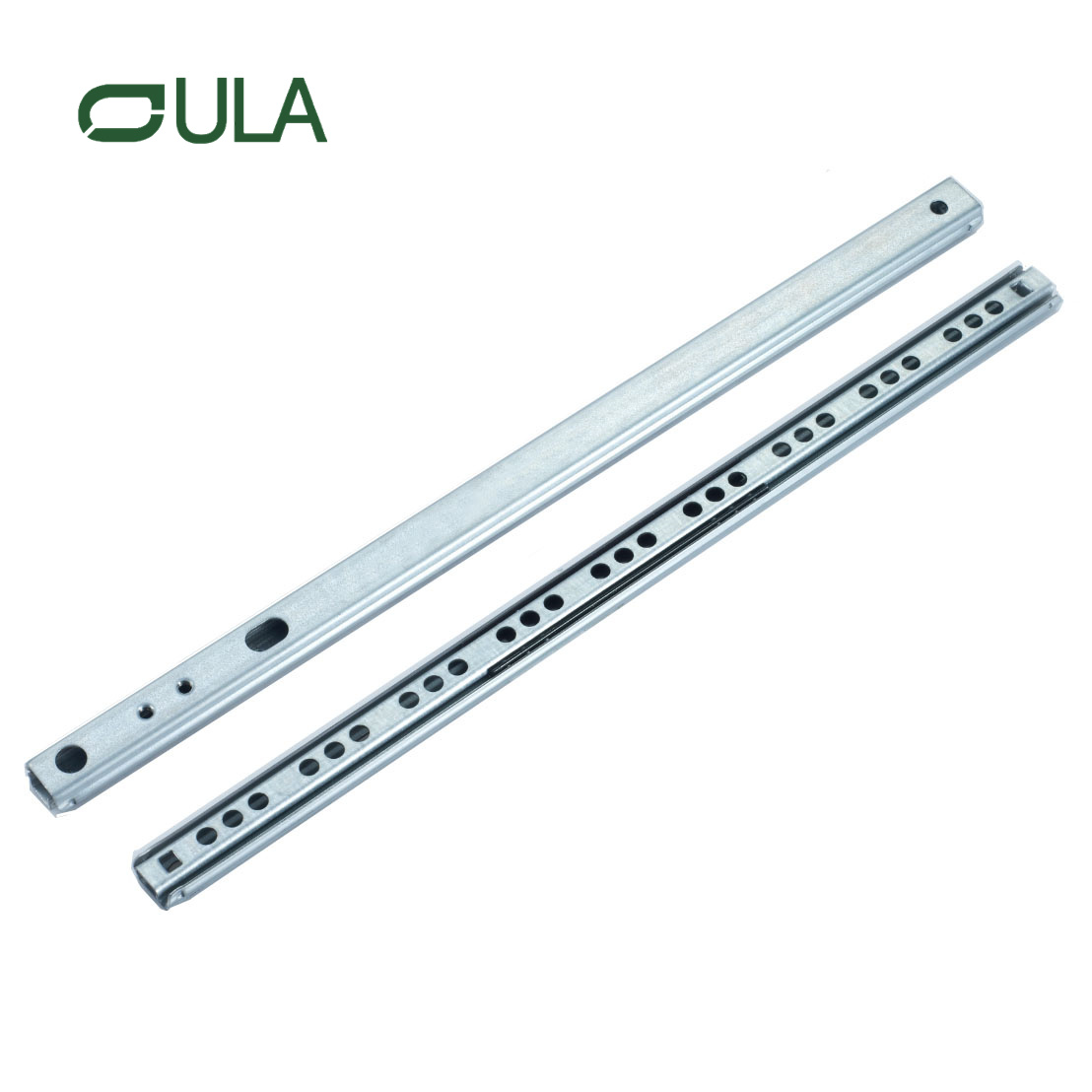

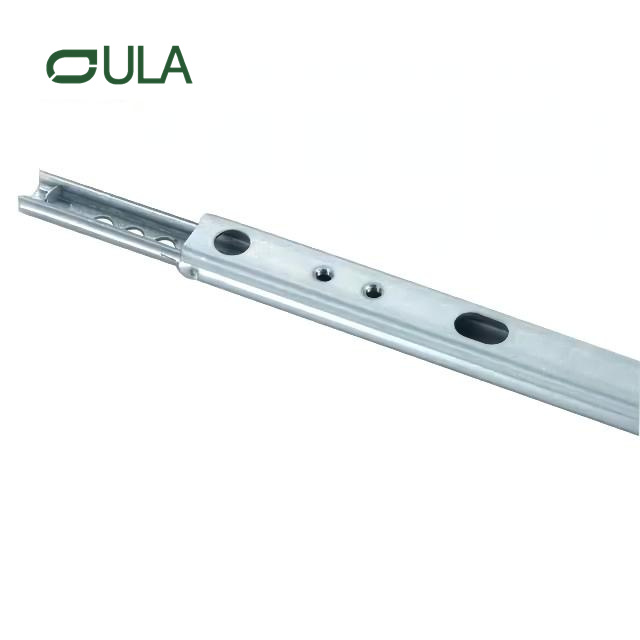

※Mini drawer slide
-Two way travel&one way travel
-24-48 hours Salt Spray test
-Light duty load capacity-under 10 KG
-at least 50000 times cycle test
