Product Detail

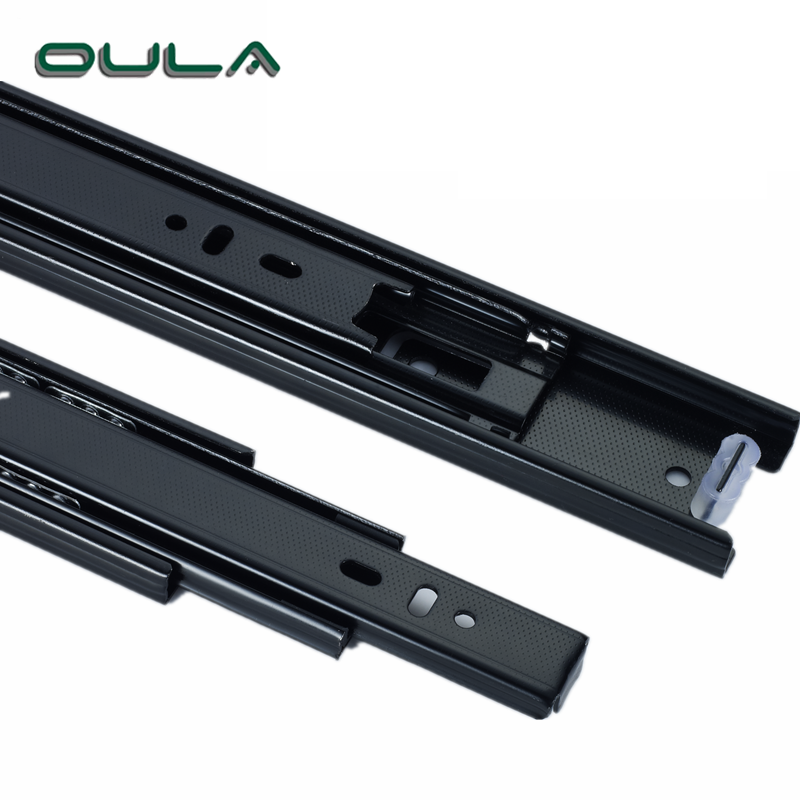

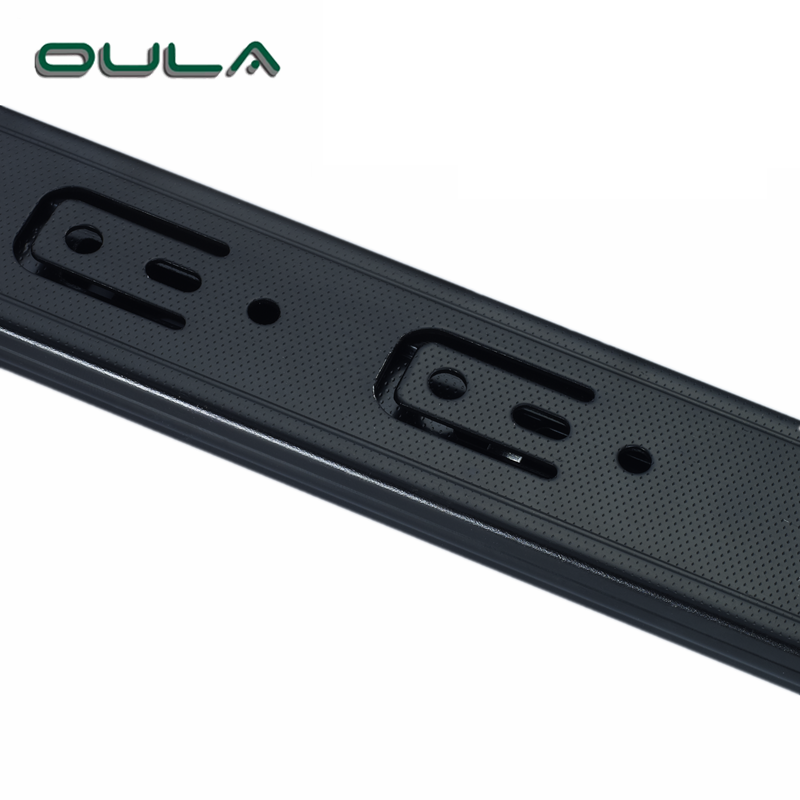

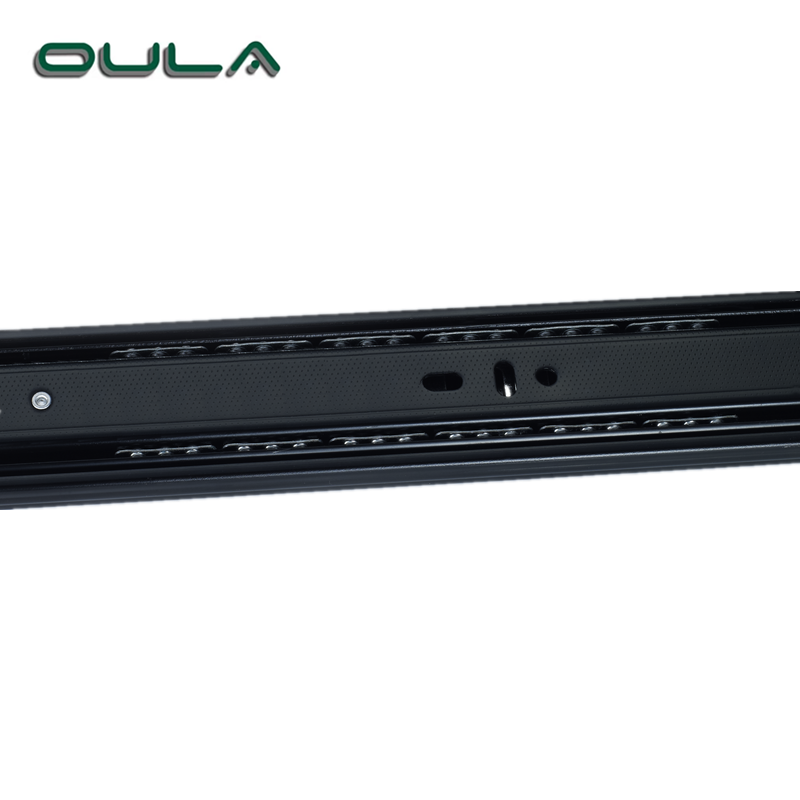

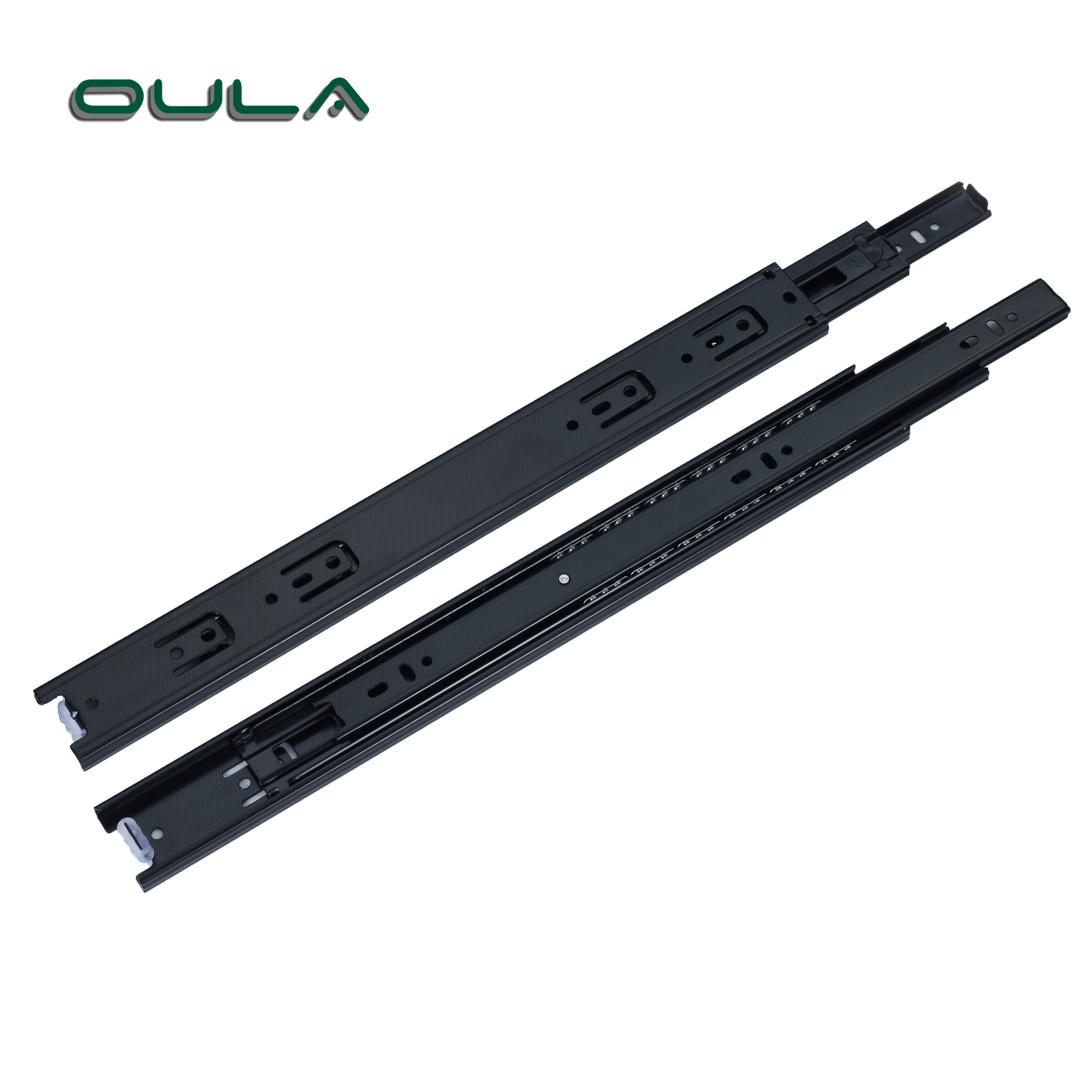

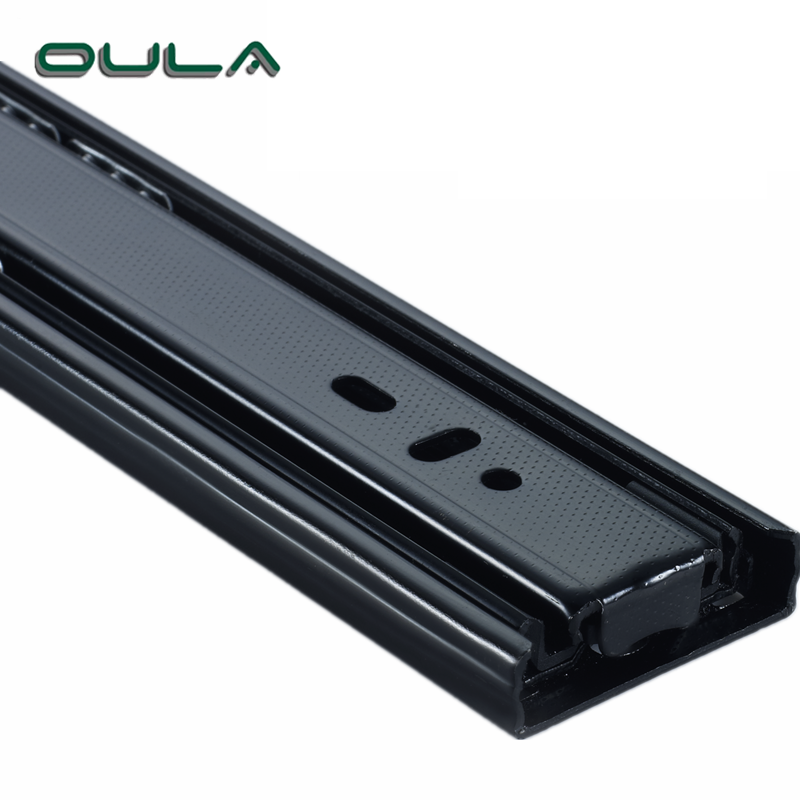

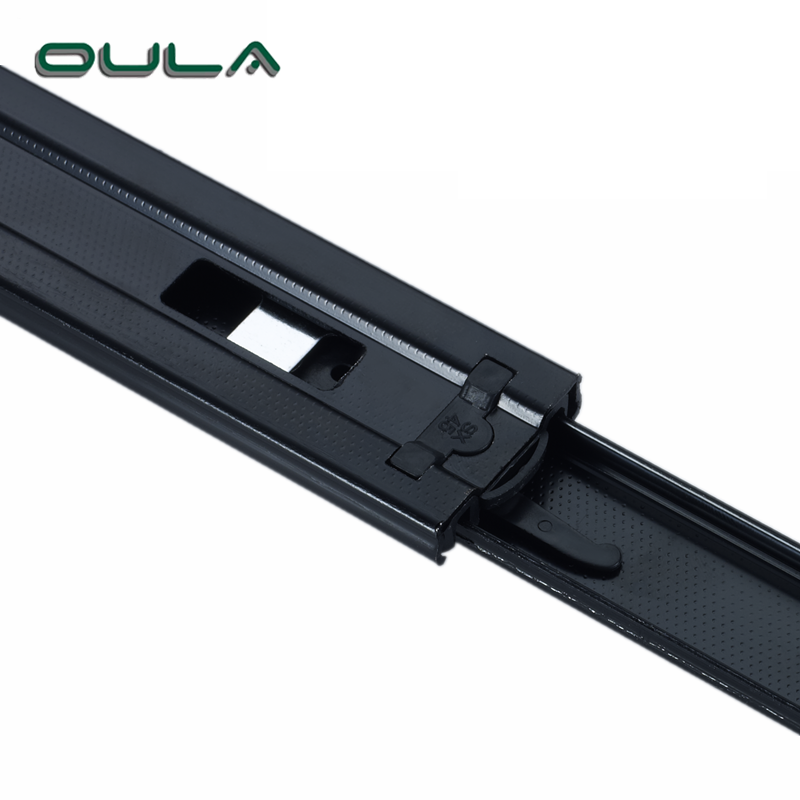

3 fold black dotted finish drawer slide rail

Detail
Material Iron Color black，white
Brand OULA

S45 压花 (6).jpg45白.jpgS45 压花 (1).jpg

Product name3 fold black dotted finish drawer slide rail
MaterialIron
Type3 fold ball bearing type
Usagedrawer/office desk/cabinet/basket
Model NomberE4509
Brand NameOULA
Place of OrignChina(mainland)Guangdong
Balls Quantity2-8balls
Width45 mm
Length10-24 inch
Thickness0.9×0.9×0.9mm
Weight55g per inch
Load Capacity45kgs
FinishingZinc/Black
Installation Methodslide installation
Salt Spray Test Hours24-36 hours
Cycle Test70000 times

S45压花（2）.jpgS45 压花 (5).jpgS45 压花 (4).jpgS45 压花 (3).jpg
